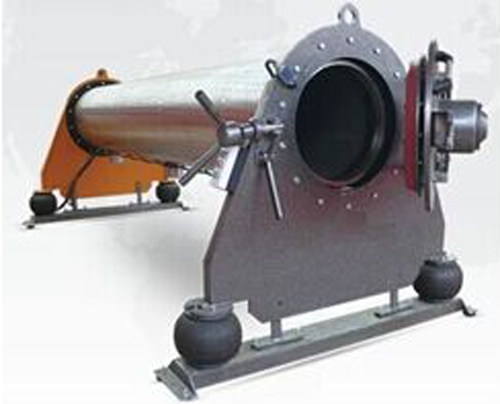

Feature
1. Stainless steel inner drum;
2. A special air bag damping system to prevent vibration, low vibration during the spin cycle;
3. Frequency control ,speed can be adjustable;
4. Horizontal tube design, it is easy for the carpet out of the entire volume;
|
型號 |
Model |
TDT-1600 |
TDT-2000 |
TDT-2500 |
TDT-3200 |
TDT-4200 |
|
滾筒轉速（r/min) |
Roller speed (r/min) |
1200 |
1200 |
1200 |
1200 |
1200 |
|
最大毛毯寬度（m） |
Max.carpet width(m) |
1.6 |
2 |
2.5 |
3.2 |
4.2 |
|
滾筒直徑（mm) |
drum diameter(mm) |
400 |
400 |
400 |
400 |
400 |
|
工作效率（m2/h） |
Extract speed (m2/h) |
15 |
15 |
15 |
15 |
15 |
|
排水時間（min） |
exhaust time (min) |
4 |
4 |
4 |
4 |
4 |
|
額定功率（kw） |
rated power(kw) |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
|
電壓（v） |
voltage(V) |
380 |
380 |
380 |
380 |
380 |
|
尺寸(mm) |
dimension (m) |
2100*1000*960 |
2600*1000*960 |
3100*1000*960 |
3800*1000*960 |
4600*1000*960 |
|
重量（kg) |
weight(kg) |
520 |
560 |
600 |
630 |
700 |
|
 |
 |
 |
 |
|
|
|
